Gravity Roller-Spring Loaded
Gravity Roller-Spring Loaded

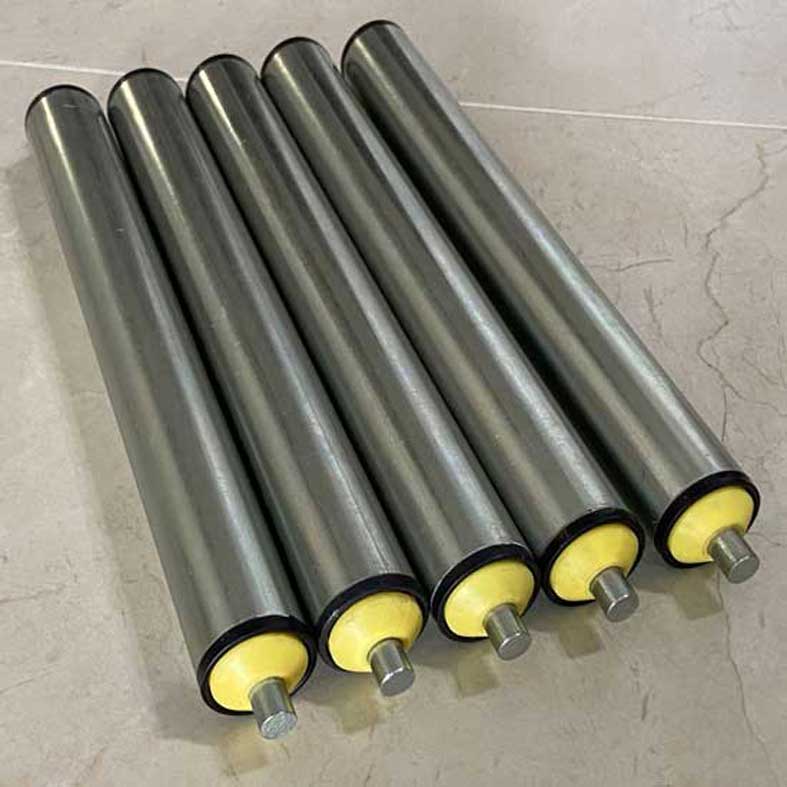

Product : Gravity Roller-Spring Loaded
Item : Model 1200L



Details :


1, The Model 1200L roller is one of the commonest and most popular rollers. It’s widely used in different transportation applications especially the carbons, boxes.



2, The main feature of this roller is the plastic bearing housing which consists of one precision ball bearing, one housing and one end cap.

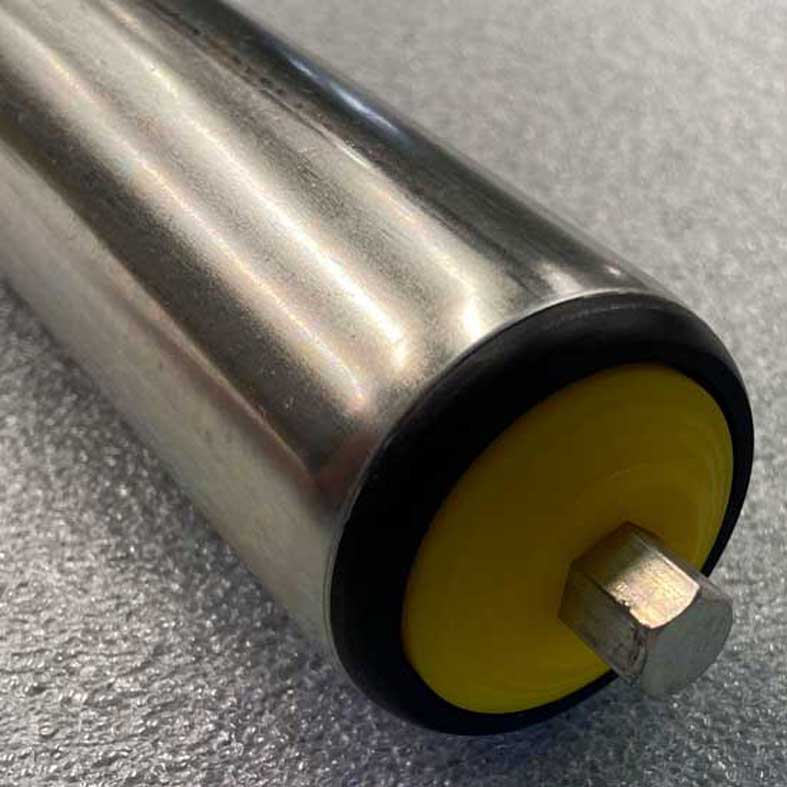

3, The plastic end cap prevents the dusts and scraps from going into the bearing and guarantee the longer bearing life.


4, The advantage of this roller is the spring loaded installation method. Because of this design, no matter you are going to assemble new conveyors, or just to replace some old  broken conveyor rollers, you can just use your two hands without any tools to finish the job.

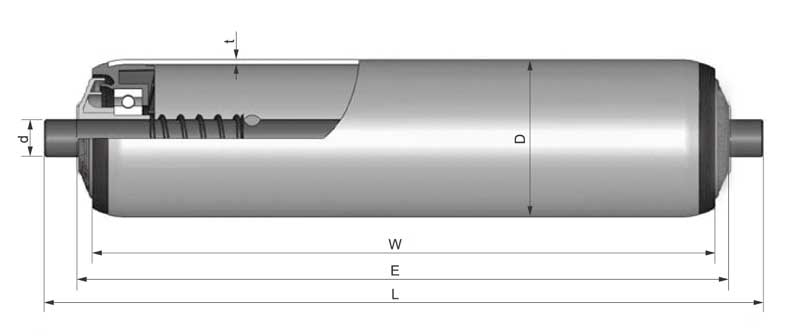

  Dimension Table

Tube Material

Tube Dia. x Thk.

Shaft Dia.

Dimension E&W

Dimension L&W

D/mm

d/mm

E/mm

L/mm

Steel, Zinc Plated

Φ38x1.2

Φhex 11 | Φ12

E=W+9

L=W+31

Φ50x1.5

Φhex 11 | Φ12

E=W+9

L=W+31

Φ50x2.0

Φhex 11 | Φ12

E=W+9

L=W+31

Φ60x2.0

Φhex 11 | Φ12

E=W+9

L=W+31

Φ60x3.0

Φhex 11 | Φ12

E=W+9

L=W+31

SS304

Φ38x1.2

Φhex 11 | Φ12

E=W+9

L=W+31

Φ50x1.5

Φhex 11 | Φ12

E=W+9

L=W+31

Φ60x2.0

Φhex 11 | Φ12

E=W+9

L=W+31

2mm | 3mm pvc soft sleeve is available for Φ38mm | Φ50mm | Φ60mm roller.

   Product Features

Tube Material

Steel, Zinc Plated | Stainless Steel 304 | Aluminium

Shaft Material

Steel, Zinc Plated | Stainless Steel 304 | Aluminium

Roller Bearing

Housing: Plastic, Black | End Cap: Plastic, Yellow
